Separate Workers from App

Benefits of separating workers from the main application (APP):

  • Availability: The application remains lightweight, allowing workers to be scaled independently.

  • Security: Workers lack direct access to Redis and the database, minimizing impact in case of a security breach.

    Step 1: Create Worker Token​

To create a worker token, use the local CLI command to generate the JWT and sign it with your STAQR_JWT_SECRET used for the app server. Follow these steps:

  1. Open your terminal and navigate to the root of the repository.
  2. Run the command: npm run workers token.
  3. When prompted, enter the JWT secret (this should be the same as the STAQR_JWT_SECRET used for the app server).

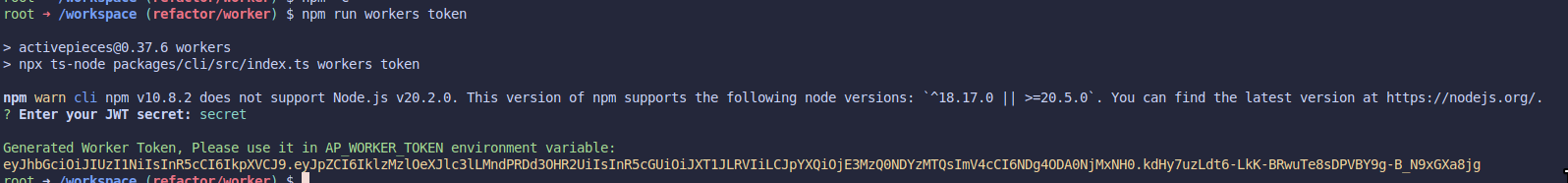

  4. The generated token will be displayed in your terminal, copy it and use it in the next step. Workers Token

Step 2: Configure Environment Variables​

Define the following environment variables in the .env file on the worker machine:

  • Set STAQR_CONTAINER_TYPE to WORKER
  • Specify STAQR_FRONTEND_URL
  • Provide STAQR_WORKER_TOKEN

Step 3: Configure Persistent Volume​

Configure a persistent volume for the worker to cache flows and integrations. This is important as first uncached execution of integrations and flows are very slow. Having a persistent volume significantly improves execution speed.

Add the following volume mapping to your docker configuration:

volumes:
  - <your path>:/usr/src/app/cache

Note: This setup works whether you attach one volume per worker, It cannot be shared across multiple workers.

Step 4: Launch Worker Machine​

Launch the worker machine and supply it with the generated token.

Step 5: Verify Worker Operation​

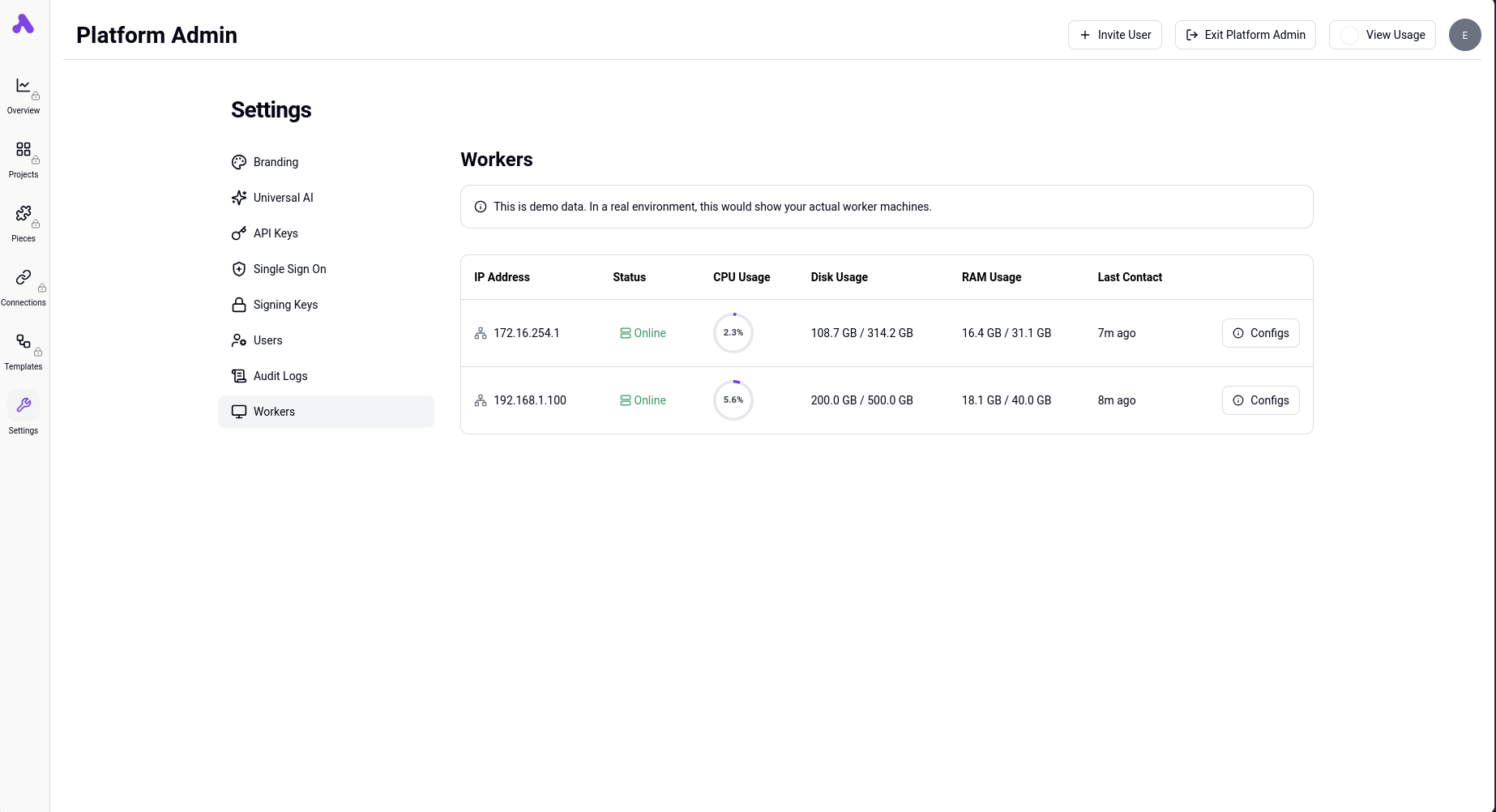

Verify that the workers are visible in the Platform Admin Console under Infra -> Workers. Workers Infrastructure

Step 6: Configure App Container Type​

On the APP machine, set STAQR_CONTAINER_TYPE to APP.
